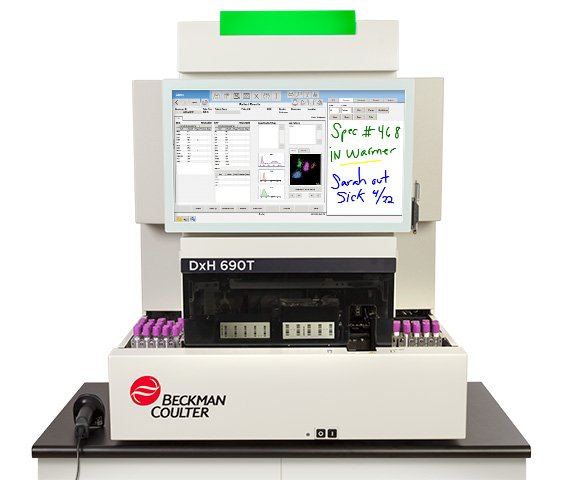

DxH 690T Hematology Analyzer
$0.00$0.00
Trusted Quality for Mid-Volume Labs
The DxH 690T is a benchtop hematology analyzer that delivers trusted results for mid-volume labs. With this table-top configuration, you can count on best-in-class hematology technology, minimal slide reviews, maximum efficiency, and significant cost savings.
Description
Technical Specifications
Methodology |
Enhanced Coulter Principle, VCS 360 with DataFusion | |||||
ParametersEmpty heading
|
CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, RDW-SD, PLT, MPV Differential: NE%, LY%, MO%, EO%, BA%, NRBC%, NE#, LY#, MO#, EO#, BA#, NRBC #, MDW (when enabled) Retic: RET, RET#, MRV, IRF Body Fluids (Cerebrospinal, Serous, or Synovial): RBC, TNC |
|||||
Throughput (tests per hour) |
Up to 100 samples/hour | |||||
Sample Volumes |
Whole Blood: 165 μL aspiration volume. Predilute: 50 μL whole blood into 200 μL of diluent | |||||
Analytical Measuring Ranges1 |
Whole Blood (CBC) | |||||
| Parameters | Units | Analytical Measuring Range | ||||
| WBC | x103 cells/μL | 0.050–400.000 | ||||
| RBC | x106 cells/μL | 0.005–8.500 | ||||
| HGB | g/dL | 0.10–25.50 | ||||
| MCV | fL | 50.00–150.00 | ||||
| RDW | % | 10.00–40.00 | ||||
| RDW-SD | fL | 15.00–150.00 | ||||
| PLT | x103 cells/μL | 3.0–3000.0 | ||||
| MPV | fL | 5.00–25.00 | ||||
| Body Fluids | ||||||
| TNC | cells/mm3 | 20–89,000 | ||||
| RBC | cells/mm3 | 1,000–6,200,000 | ||||
Data Management |
Up to 50,000 patient results with histograms, scatter plots, and demographics
100,000 patient results with graphics for power computer |
|||||
Quality Assurance |
QC with Levy-Jennings graph; XB/XM for moving averages, daily check, intelligent quality monitoring, MRV, IRF, customizable calibration and QC reminders and alerts, auto export of QC | |||||
Acoustic Noise Level |
≤ 60 dBa | |||||
Radio Frequency and Interference Immunity |
Meet the product level standards EN 61326-1 (Electrical Equipment for Measurement, Control, and Laboratory Use—EMC Requirements), and EN 61326-2-6 (Part 2, Specific Requirements for In-Vitro Diagnostic Devices) | |||||
Power Consumption |
DxH 690T SPM: 520 W (1775 BTU/hour), Monitor: 35 W (120 BTU/hour), DxH Power Computer: 160 W (546 BTU/hour) | |||||
Dimensions and weight2 |
Width | Height | Depth | Weight | ||
| 76.2 cm (30 in.) | 90.17 cm (35.5 in.), with cover closed
113.03 cm (44.5 in.), with cover open |
83.82 cm (33 in.), including the removable back panel
80 cm (31.5 in.), excluding the removable back panel |
~141.97 kg (313 lbs.), including monitor~136.98 kg (302 lbs.), excluding monitor |
|||
Additional Clearance |
15.2 cm (6.0 in.) per side of instrument for troubleshooting; 3.8 cm (1.5 in.) behind instrument for sufficient cooling | |||||
Maintenance and Troubleshooting
Service |
New Preventative Maintenance (PM) schedule with customer care visits |
Support |
Onboard IFU and Instructional Videos, Automated QC and calibration reminders, PROService |
Analyzer Downtime |
Minimum of 30 minutes in cleaner every 24 hours with automatic daily checks |
