Description
Important quality control
*Â New ABS engineering plastic injection molding.
* 4.3 inches, resolution 272×480 TFT screen, support multi-language, equipped with backlight, suitable for various environments, clearly display all working status on the same screen.
*Â The aluminum-magnesium alloy bracket is stable and reliable, has good shock resistance and is easy to move.
*Â Fixed handle design, comfortable, stable and easy to move.

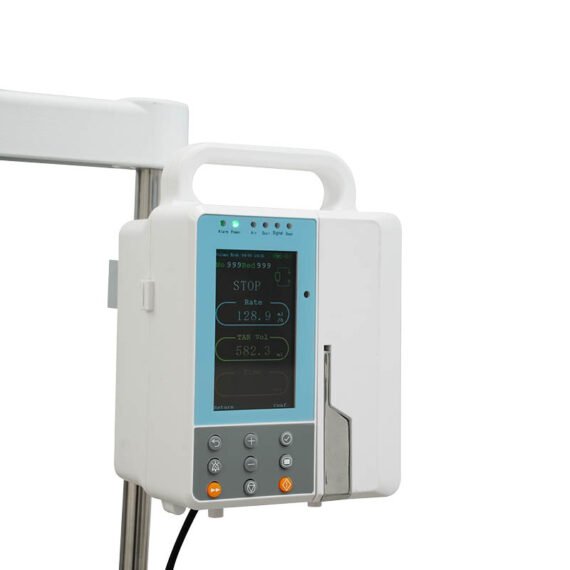

*Â The stable screw hanger can fix the infusion pump on the wall or pole.
*Â Built-in with a large capacity lithium-ion battery, ensuring a continuous operation of up to five hours in case of AC power interruption.
*Â Excellent KVO function (Keep vessels open) keeps the infusion pipeline unobstructed.
Important quality control
*Â Interface display content: time, battery capacity, infusion condition, mode, rate, infusion volume, cumulative amount, infusion time, volume level, department, and bed number.
*Â It can remotely control devices, directly input numbers to adjust parameters such as speed, infusion time, and medicine volume, which can save time and effort for medical staff.
*Â The triple alarm system of sound, light and screen has a prominent function.
Technical parameters
| Package size | 230*240*335mm |
| Product weight | gross weight 3.2kg net weight 2.3kg |
| Mode selection | drop mode, volume mode, time mode |
| Apnea alarm | (10-40) seconds |
| Adjustment range of infusion drops | one drop/min~400 drops |
| Adjustment range of flow rate | 1ml/h ~ 1200ml/h |
| Speed accuracy | within ±3% |
| Fast forward rate | 800ml/h |
| Remote control function | 0m–5m |
| Working environment: temperature | ﹢5℃~+40℃ |
| Relative humidity | 20%~ 90% |
| Atmospheric pressure | 860hPa~1060hPa |
